Safety Adjustable Solar Power Support Mounting System for Ground PV Panel Support Install
Fixed adjustable mounting system
Description:
Fixed adjustable mounting system usually applies to the large scale photo-voltaic power station.It has been designed and engineered to suit to both concrete foundation and ground screw foundation . All the components are high fit and convenient for installation.
Benefit:
1. Professional customized design
Products were designed by the experienced designers which have the systematic design, stable structure, mature technology, can reduce the difficulty of the installation on the most conditions.
2. Easy installation
The pre-assembled design of the highest level in factory simplifies construction site work to the largest degree and therefore installation is simple and quick. It can effectively improve construction efficiency, shorten construction period and reduce construction costs.
3. Safety
The racking systems can stand up to the extreme weather condition. The main support components have also been tested to guarantee its structure and load-carrying capacity.
4. Widely application
The mounting system suitable for various kinds of project, including residential project, commercial project, utility project and so on.
5. Great Compatibility
The Tianfon mounting system compatible with most of the major framed and frameless PV modules on the market.
Product Parameter :
| Type | Ground solar mounting |
| Color | Natural or Customized |
| Treatment | Anodized, Galvanized |
| Structural materials | Aluminum Alloy,Hot-Galvanized Steel, Stainless Steel |
| Install Angle | 0-60 degree |
| Ground Clearance | ≥0.15m |
| Max Building Height | 20 m |
| Wind load | 130mph(60m/s) |
| Snow Load | 30psf(1.4kN/m2) |
| Applicable Module | Framed, frame-less |
| Module Orientation | Portrait, landscape |
| Array Layout | According to the actual situation |
| Warranty | 10 years |
| Duration | More than 25 years |
|
|

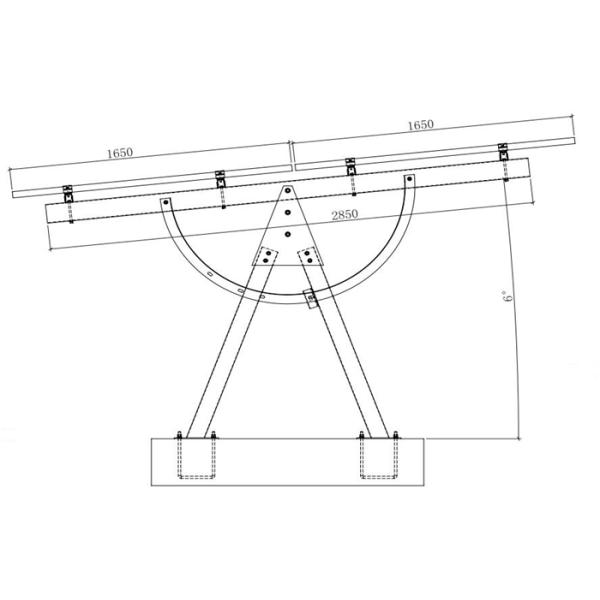

Framed Or Frameless Panel Safety Adjustable Mounting System for Ground PV Panel Support Installation Images
|
